HazardPRO™ Stud Sensor

HazardPRO™ Stud Sensor
C ETL US

HazardPRO Stud-Mount Temperature Sensor

Features

  • Direct connection to HazardPRO node
  • Fixed cable with M12 connector included
  • 2-wire (current loop type)

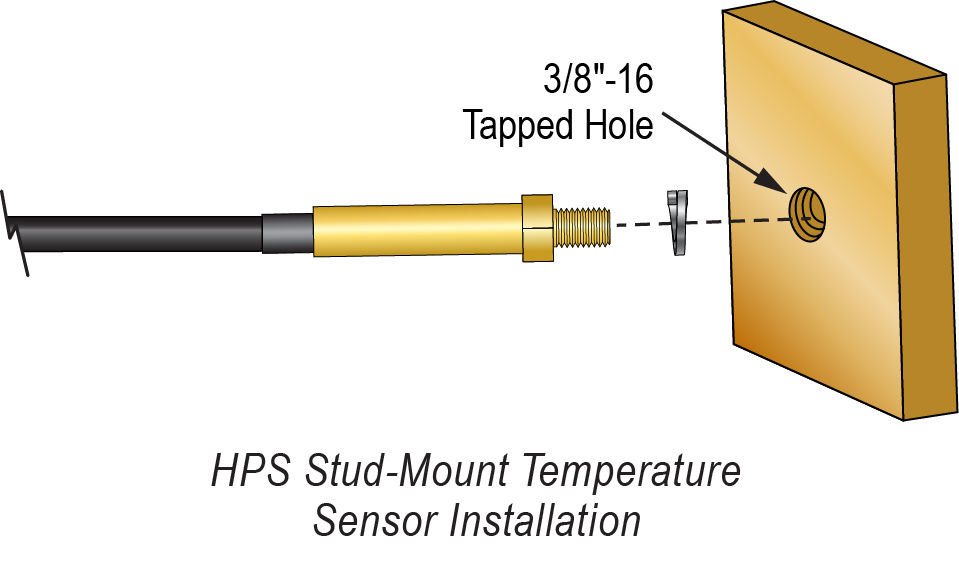

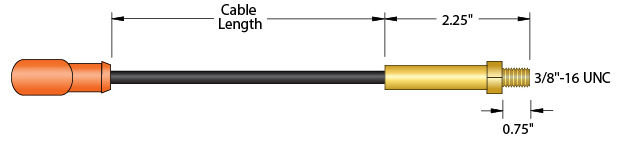

  • 3/8"-16 threaded stud for mounting
  • Optional brass block magnet mount adapter
  • Optional stainless steel jacketed cable
  • Class II, Div 1, Groups E, F, G, Class III, Div 1

The stud-mount temperature sensor is often used with the optional magnet-mounted brass block to measure surface temperature on gear boxes and other equipment surfaces where no holes can be drilled.
