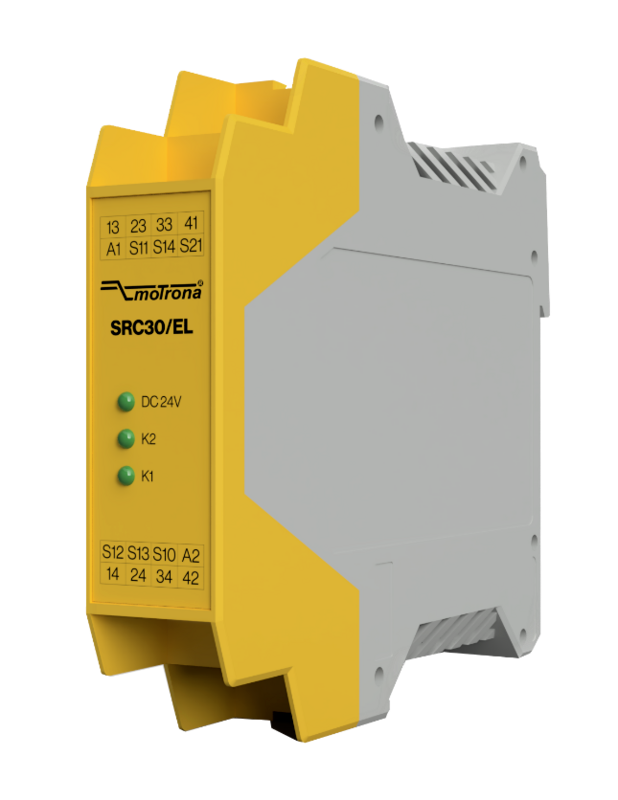

The SRC30/EL offers comprehensive protection with three safe relays and supports various encoder types. It is certified in accordance with EN 81-20 and EN 81-50 and is perfect for elevator and safety gate monitoring of machines and systems.
- 3 instantaneous safety contacts
- 1 instantaneous signaling contact
- Connection of:
- Emergency stop button
- Mechanical safety switches
- Non-contact safety switches
- Safety components with OSSD outputs
- Single or dual-channel operation
- Feedback loop for monitoring downstream contactors or expansion modules
- Cyclical monitoring of the output contacts
- Display of switching status and mains via LED
- Automatic or manual start
- Cross-circuit and earth fault monitoring
- Use up to SIL3/PLe, category 4
(EN ISO 13849-1 / EN IEC 62061 / EN 61508)
