HazardPRO Belt Alignment Sensor
• Direct connection to HazardPRO node
• Fixed cable with M12 connector included
• 2-wire (current loop type)
• Installs in-line of belt travel
• Optional stainless steel jacketed cable
• Class II, Div 1, Groups E, F, G, Class III, Div 1

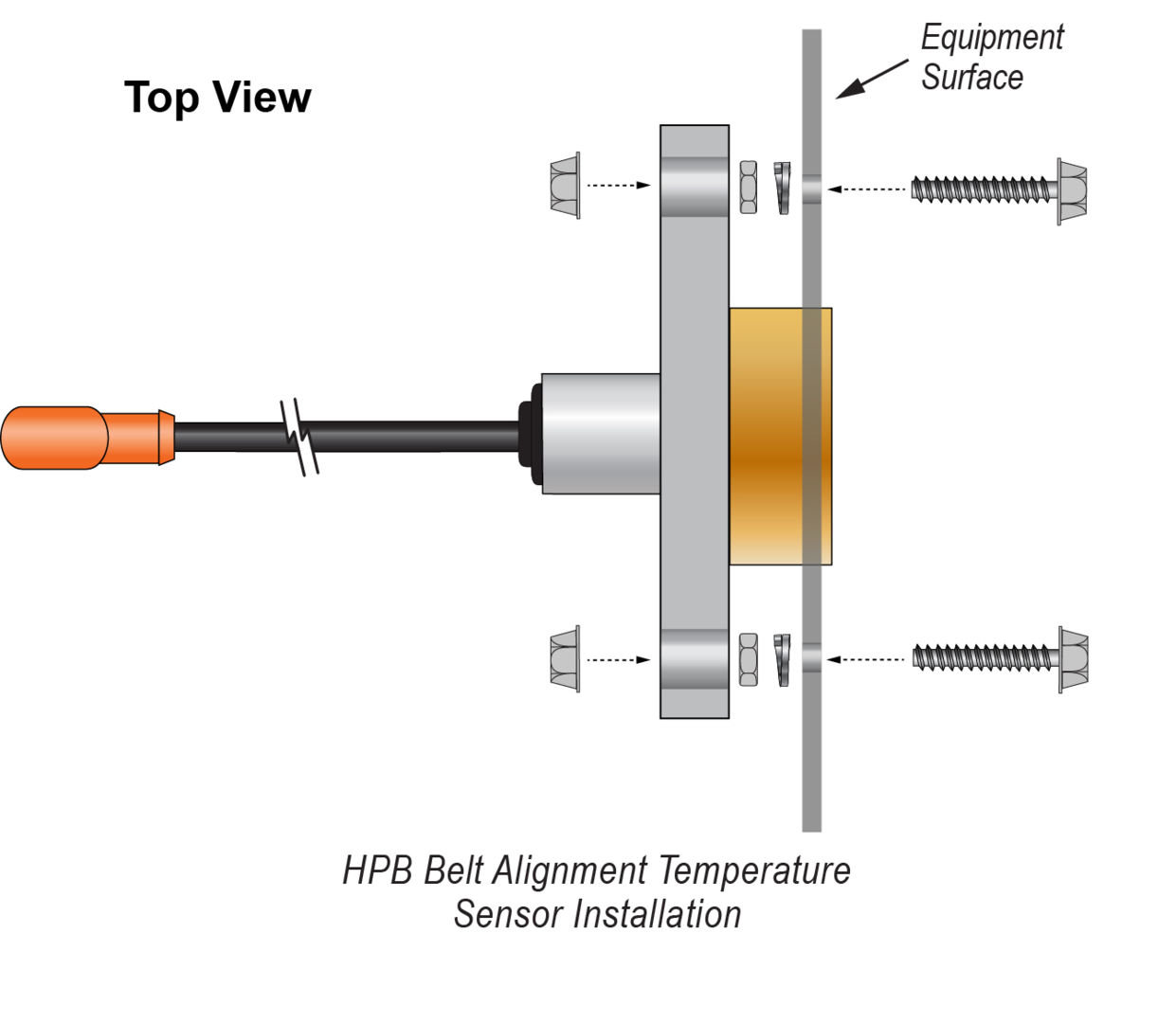

The belt alignment temperature sensor is mounted on the machine in a location such that if the belt moves to the inside of the casing, the brass sensor body will be contacted and the resulting temperature rise will be detected.
