SG1000C Single-Turn Shaft Position

SG1000C
CEUL Listed Bottom

Single-Turn Position Monitor

Features
  • Shaft position feedback — 0° to 359°
  • Precisely measures repetitive single
      turn rotary movement
  • Works on powered or manually driven shafts
  • Non-volatile memory — retains monitored shaft position
      in the event of a power loss
  • Interface with PLC or use the optional PM500 Process
      Meter as a remote display unit
  • Class I, Div I (C, D) Class II, Div I (E, F, G)

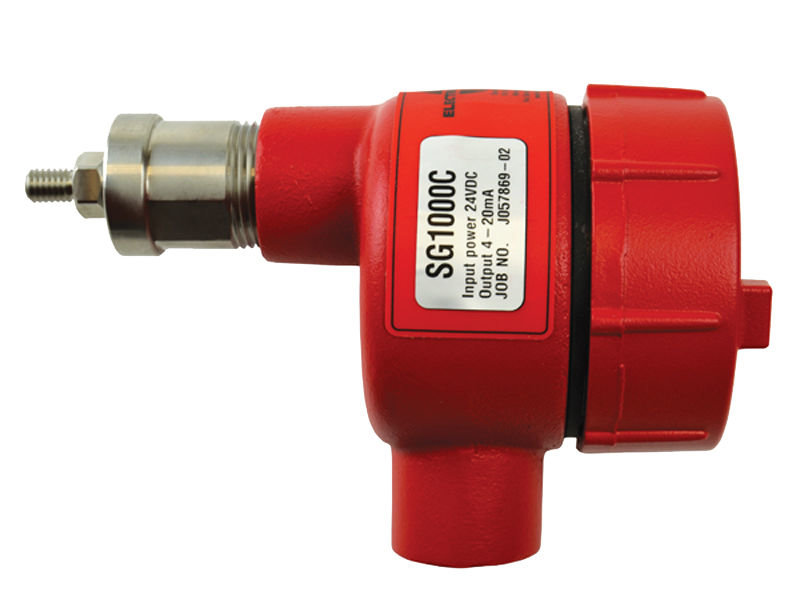

The SG1000C is housed in a compact and rugged explosion-proof, NEMA 4X enclosure, the SG1000C is an encoder-based position sensor providing a 4-20 mA output and is used to measure processes that have a repetitive single turn clockwise or counterclockwise rotary movement.

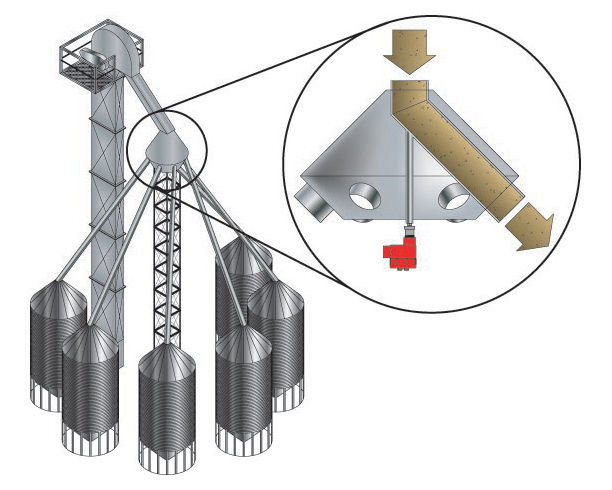

Once programmed, the SG1000C outputs a 4 mA DC signal when the encoder is at the beginning of its rotation (0 degrees) and outputs a 20 mA DC signal when the encoder is at the full turn position (359 degrees). When the encoder is at any position (between 0 degrees and 359 degrees) the SG1000C outputs a signal that is proportionally between 4 and 20 mA. Typically the SG1000C is used to sense the chute position of a rotary grain distributor enabling the end-user to very accurately monitor shaft position, ensuring accurate process control.

The optional PM500 Process Meter can be used as a remote display and can provide the +24 VDC output power for the SG1000C. It can display the 4-20 mA signal in any user units, including as a percentage between fully-closed (0%) to fully-open (100%) allowing the gate or valve to be accurately positioned when regulating the flow of a product or mixing products. The PM500 has options of two or four relays which are fully programmable and there is also a 2-channel, 16-bit 4-20 mA programmable output option for mirroring the 4-20 mA signal to a PLC.
