Pulse Generator Features
- Varying Magnet Counts (PPR)
- Face or Edge Read Pulser Discs
- Nylon, PVC, Stainless Steel, Aluminum
- End-of-shaft or clamp around mount
- Narrow and Standard Size Pulser Wraps
- High Speed Options
- Custom Designs
- NEMA C Frame Ring Kits
Pulse Generator Overview
Shaft Speed Targets are needed to generate a pulse for a Speed Sensor that is monitoring a shaft for RPM (Revolution Per Minute). Electro-Sensors Pulse Generators provide the shaft speed target needed for shaft speed detection with a sensor or switch. We have many options available for all your application needs including customizable split collar pulser wraps.
Pulse Generator Selector Guidepdf 3,959.85 KB 20 mrenfroe 11/7/19, 9:46 AM Download
End of shaft mounting, non-contact sensing, material options include nylon, aluminum, PVC, and stainless steel. Magnets can be face or edge read and can produce a customized number of pulses, 10,000 rpm maximum speed.
Clamps tightly to the shaft when end-of-shaft mounting is inaccessible. Material options include PVC, aluminum, and stainless steel. Magnets are mounted on the the outside circumference. Pulses per revolution can be customized.
Kit includes NEMA C mounting ring, hardware magnet wheel and sensor. Available with single or bi-directional output, 60 or 120 pulses per revolution, NPN open collector output.

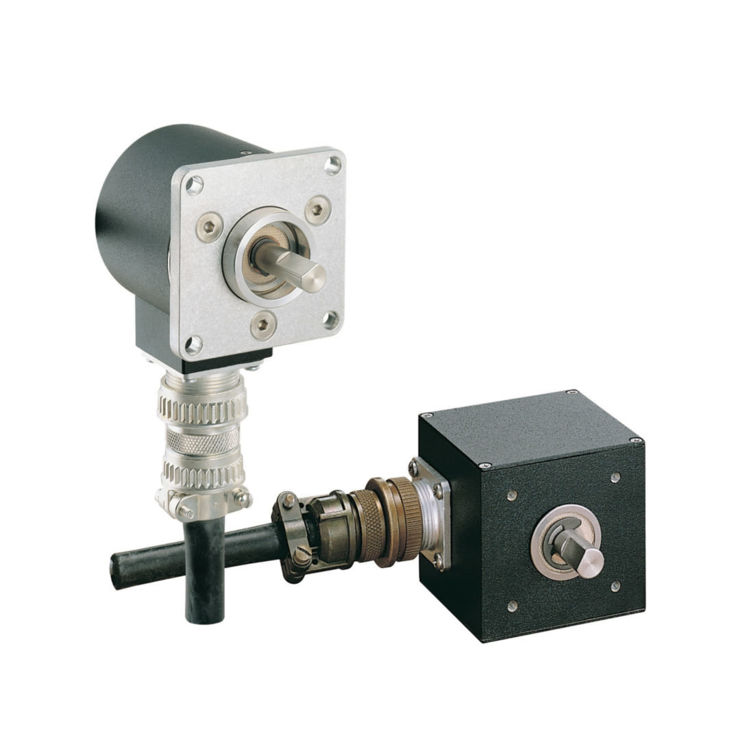

Rotary shaft encoders for use on slow shaft speed applications. High resolution digital pulse output and heavy-duty models. NPN open collector output or two square waves in bi-directional.
The EZ-18mm and the EZ-3/4in Easy Mount Bracket Assemblies are used with Electro-Sensors speed sensors to generate pulses or 4-20 mA signals for use with display meters, speed switches, or PLC inputs. Pulser Disc included.
Simplifies mounting, installation, and operation with certain models of shaft speed switches and sensors.
Comprise a ferro-magnetic nylon ring with 120 alternating magnetic poles and an aluminum hub.
Converts linear travel to a digital pulse frequency, NPN open collector output, ideal for slow speed applications. Includes traction wheel, encoder, and mounting bracket with mating connector. Bi-directional models available.
