Split Collar Pulser Wraps

Split Collar Pulser Wraps

Shaft Mount Wraps

  • Standard wraps rated up to 3,000 rpm

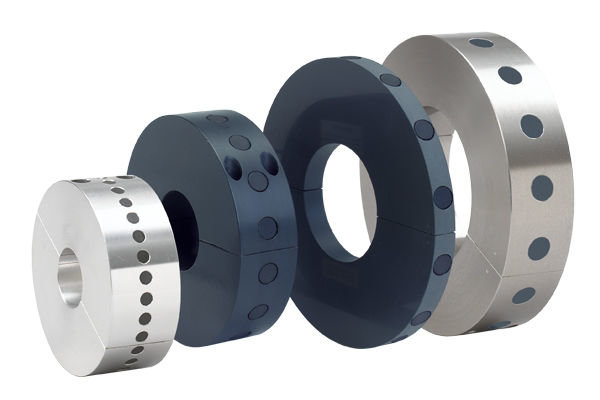

  • Standard wraps available in PVC, aluminum,
      or stainless steel

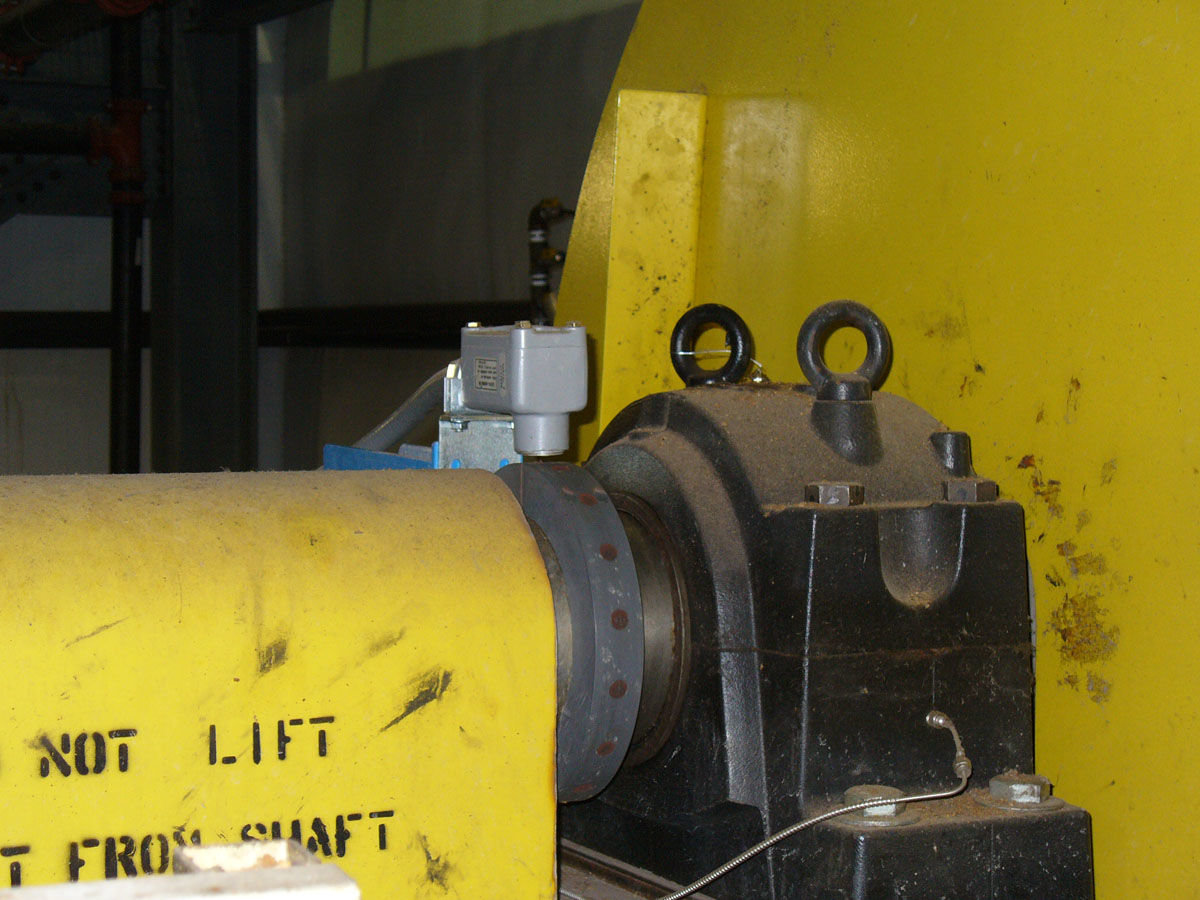

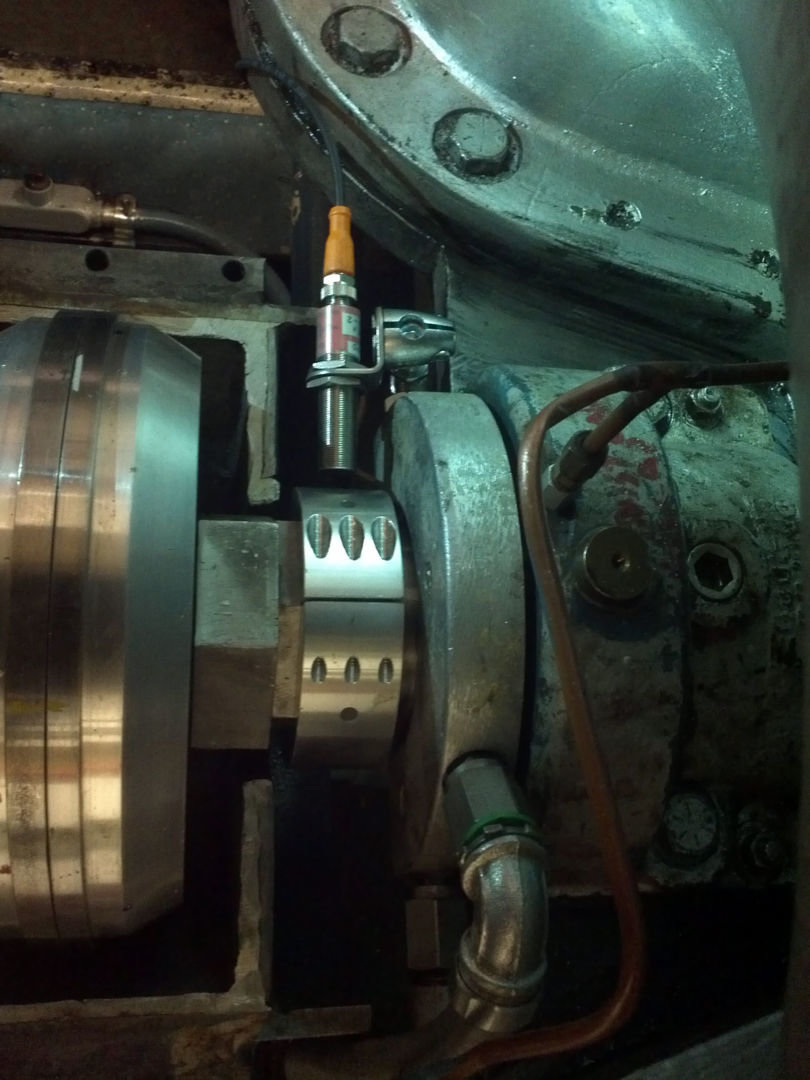

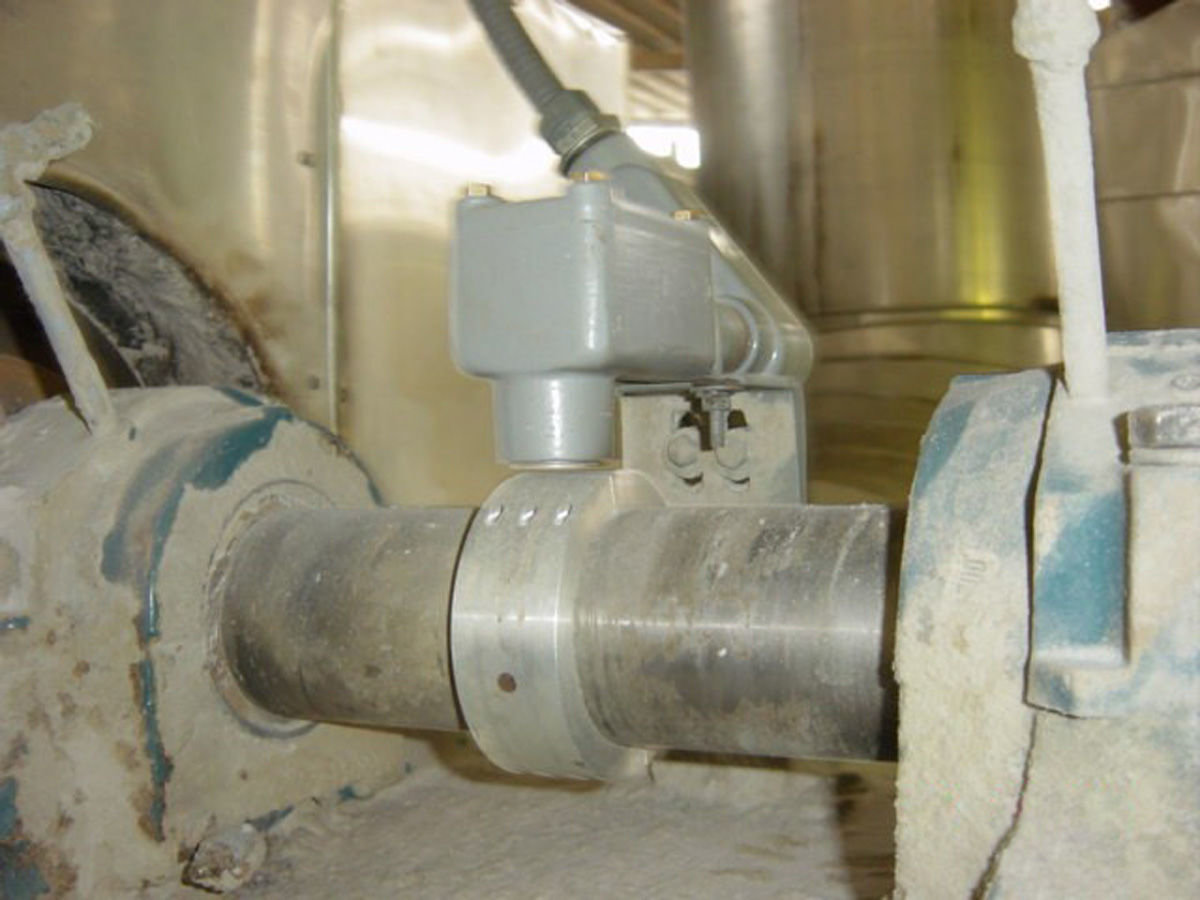

  • No machinery tear-down required for mounting
  • High speed wraps available

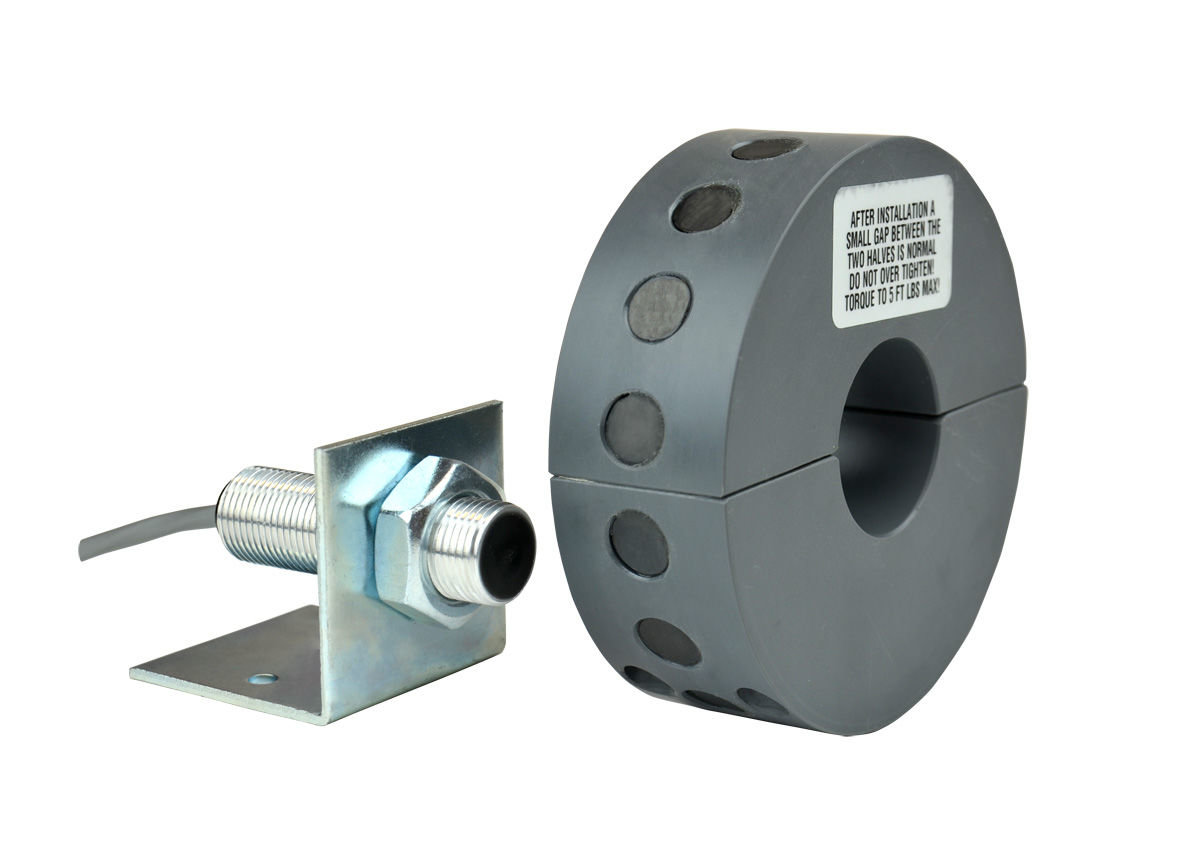

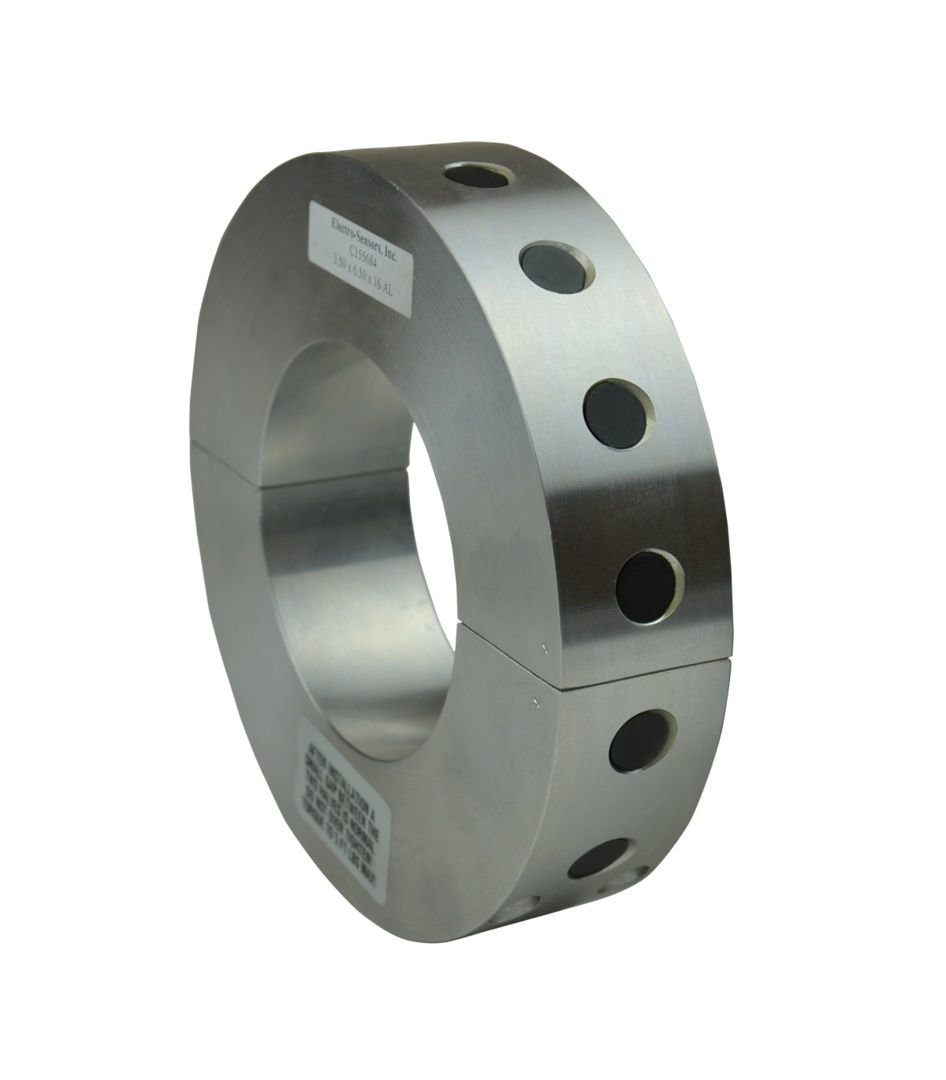

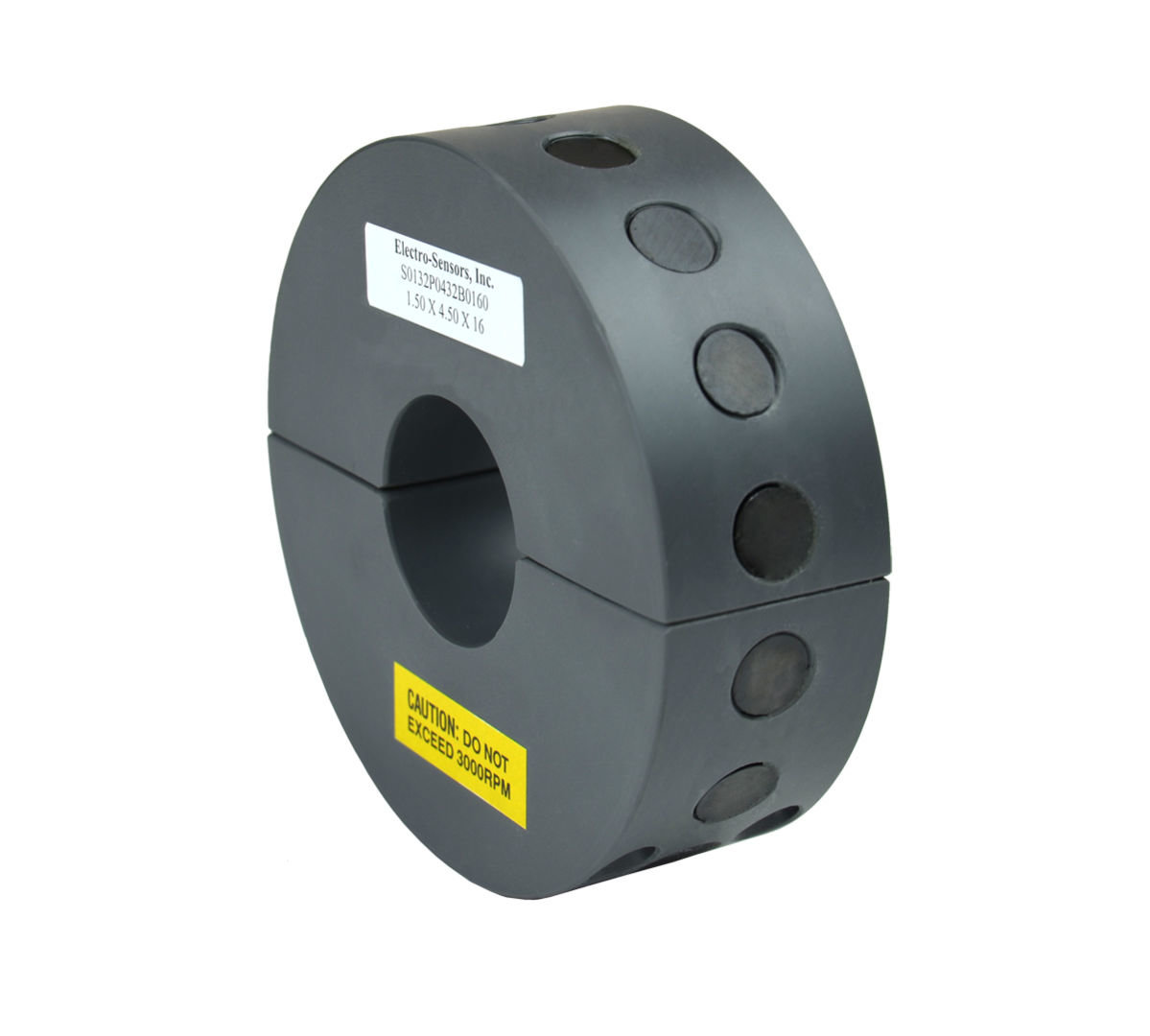

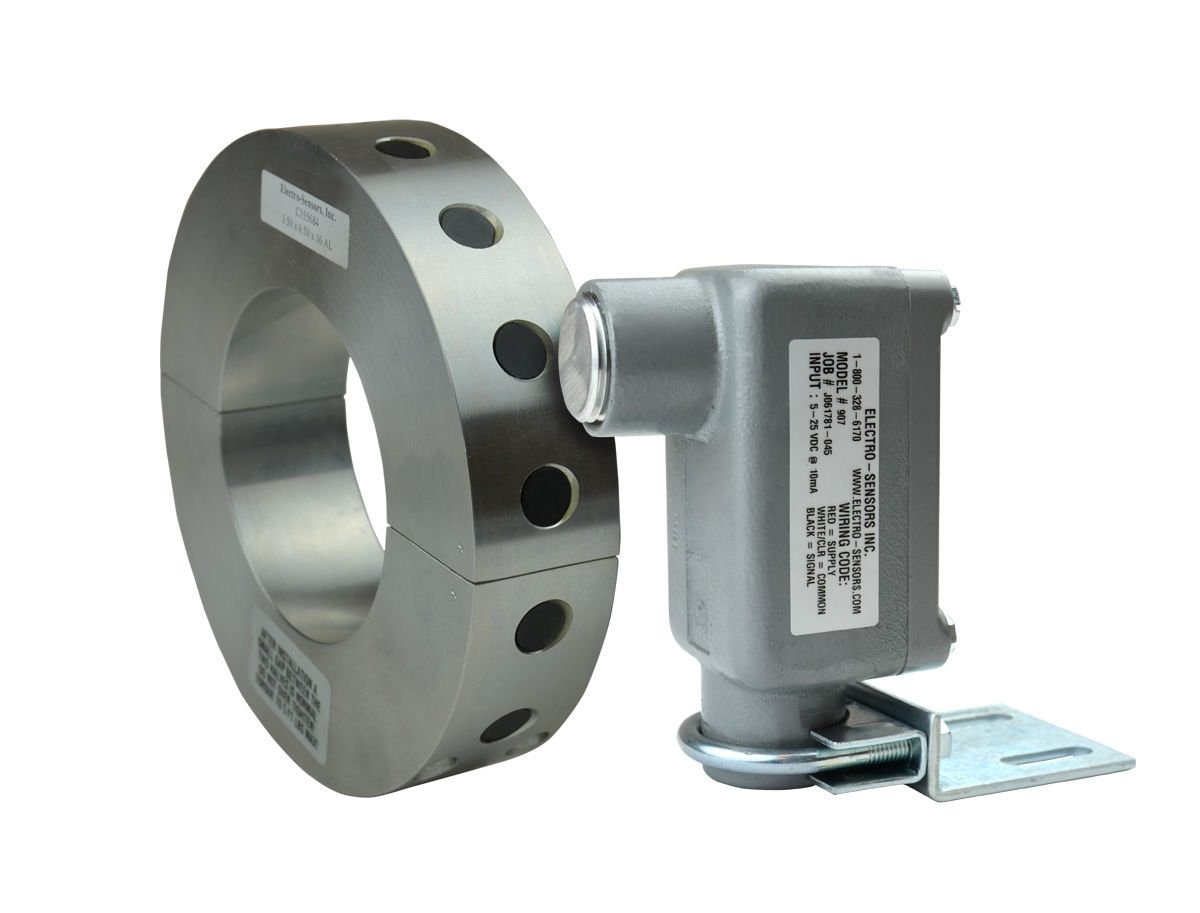

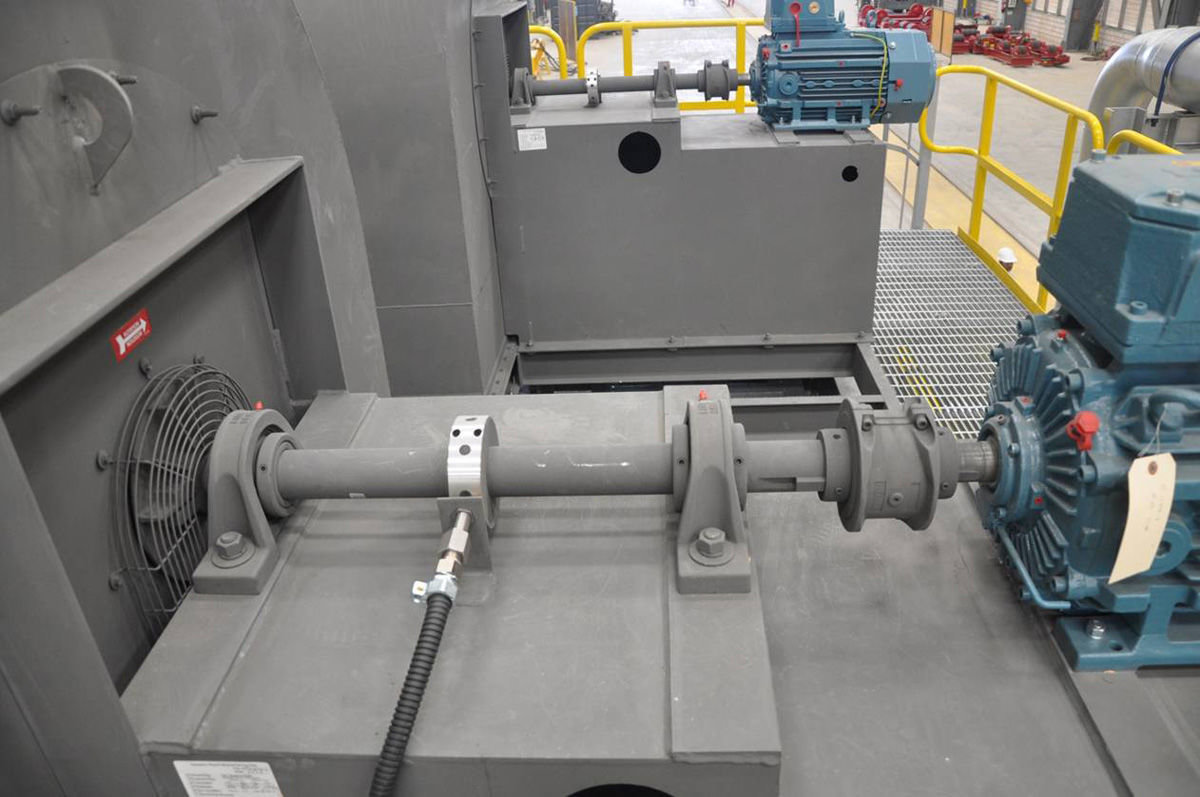

Standard Pulser Wraps have magnets mounted on the outside circumference that serve as targets for Hall Effect and Magnetoresistive sensors that switch when exposed to magnetic fields. All wraps are custom machined to the diameter of the monitored shaft and are split into halves. The halves are secured around the shaft with recessed Allen head socket screws (supplied). Standard pulser wraps provide magnetic targets that are strong enough to allow gap distances up to 1/2 inch. Standard Wraps are 1.5" wide and have a minimum outside diameter of 4"
