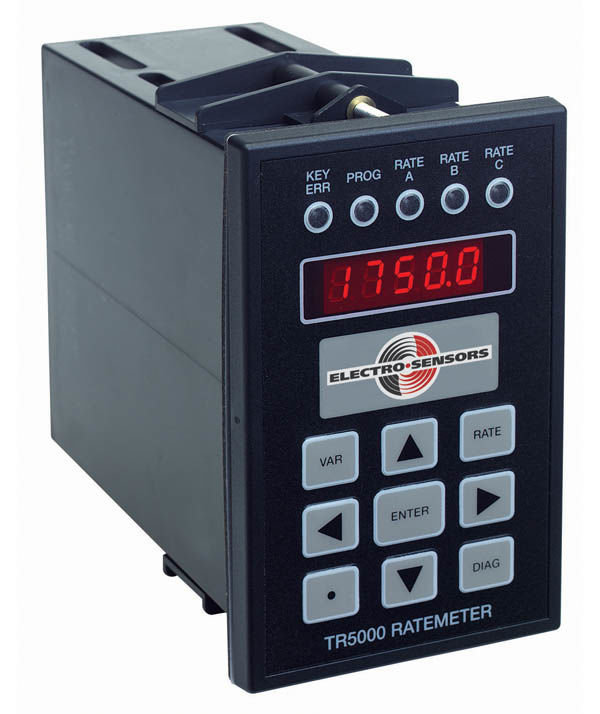

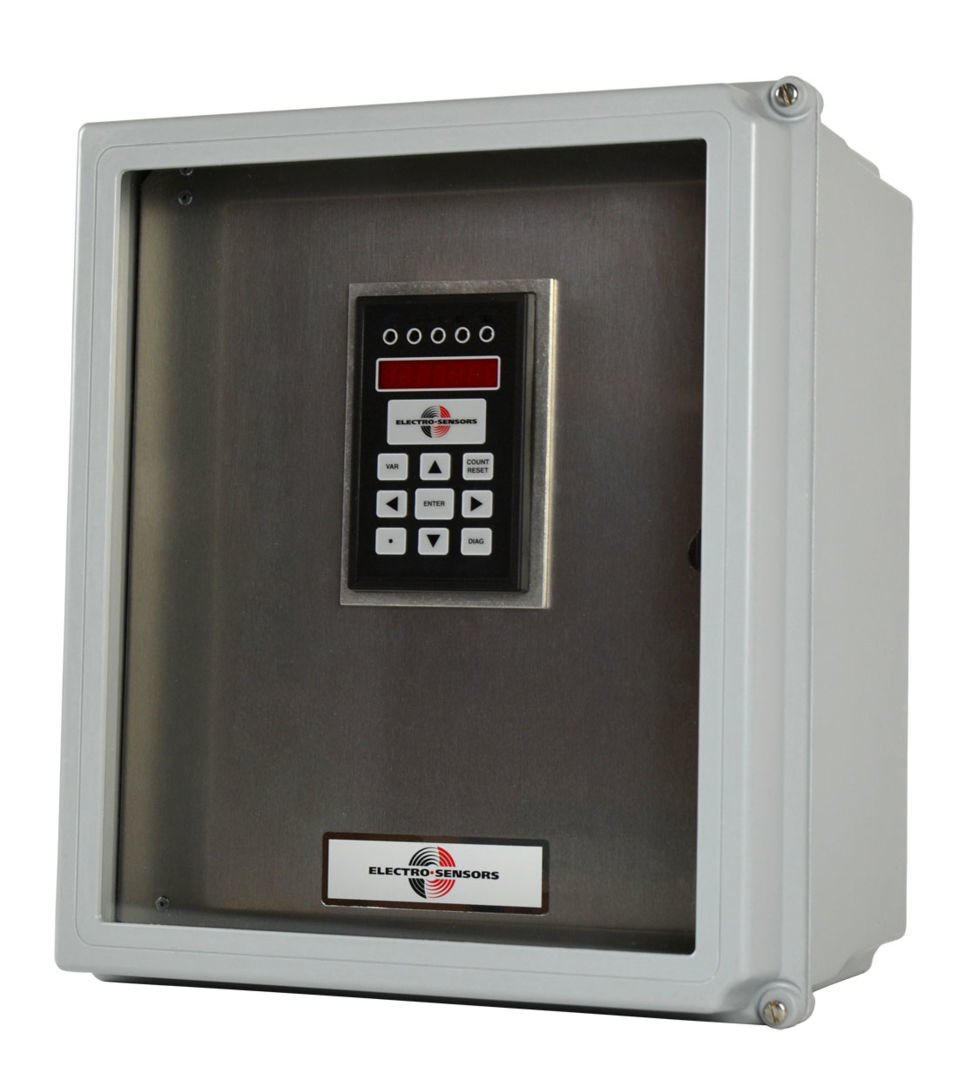

TR5000
CEETL

Full Logic Control Process Ratemeter

Features
  • Displays rate, time in process, ratio,
      sum, difference, or draw
  • Completely field adjustable
  • Full diagnostic functions
  • Three programmable transistor setpoint outputs
  • Three programmable AC inputs
  • Start delay and setpoint delays
  • Non-volatile memory
  • NEMA 4 faceplate
  • Keypad lockout

The TR5000 displays up to three separate values of rate (from up to 2 different shafts) and compares them to programmable setpoints. Rates A and B can be programmed for speed or time in process. Rate C displays a relationship between rates A and B. This can be a ratio (A/B), Sum (A+B), Difference (A-B), or Draw (A-B)/B. The ratio feature is typically used in blending and mixing applications. The sum and difference are commonly used when the operator needs to display the combined output of two separate but related processes. Draw is commonly used in web handling systems, such as plastic or wire, to indicate the thickness or stretch of the material being processed.

Options

  • 4-20 mA output can be programmed to represent three rates: A, B, or C. The 4-20 mA output can be scaled to reflect any area of the range, including operations requiring an inverse output
  • Up to three programmable relay contact outputs, rated 250 VAC, 30 VDC at 5 Amps resistive load
