EZ-100 & EZ-SCP

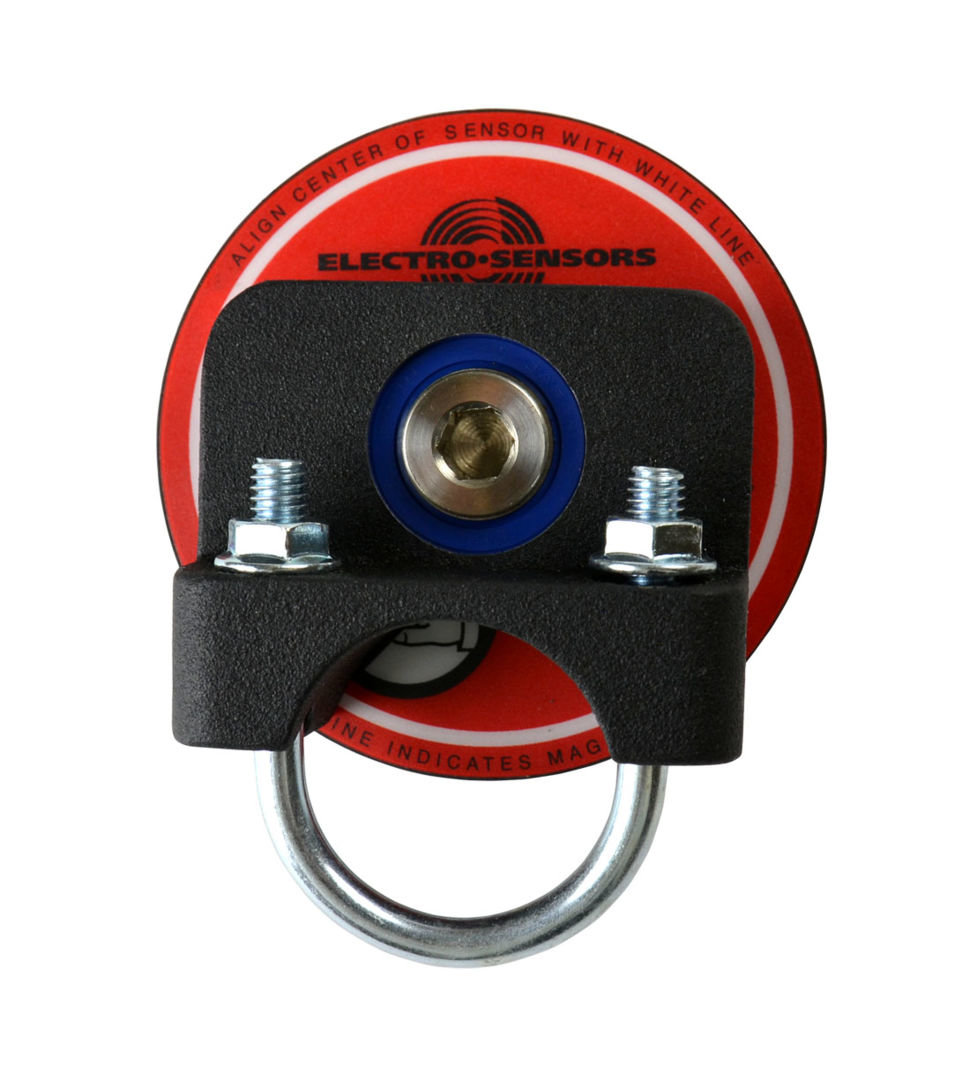

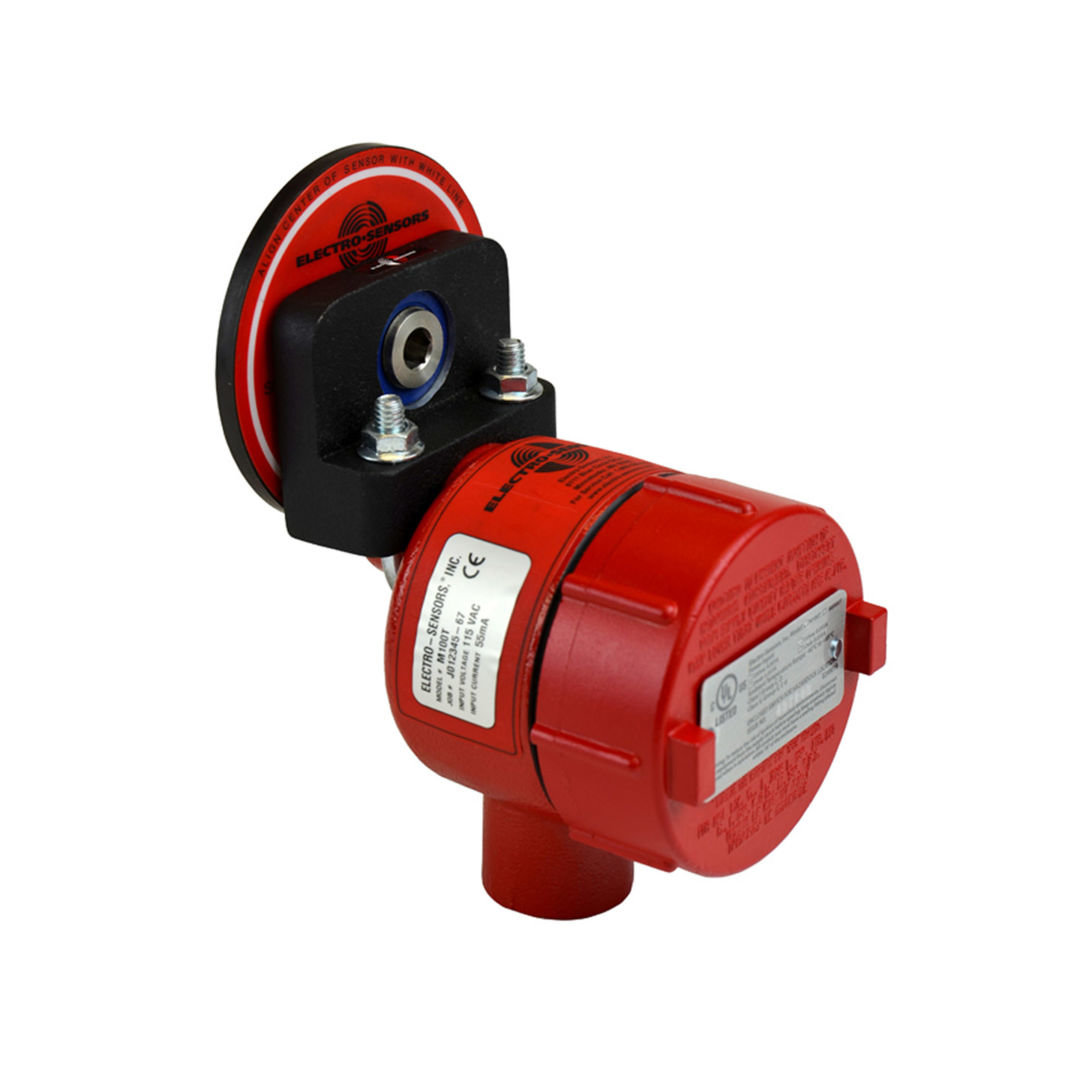

EZ-100 Mounting Bracket

Features
• New and retrofit installations
• Easy and fast installation (drill and tap)
• No extra brackets or hardware required
• 1/2 inch - 13 UNC 2A thread
• Includes 255-EZ Pulser Disc (other EZ Pulser Disc
    models available)
• Rated for use up to 300 rpm (for information about
    use with higher speeds, consult factory)

Can be used with the following shaft speed switches and sensors:
  • 907 XP
  • M100
  • M100T
  • FB420
  • SpeedTalker DN-XP

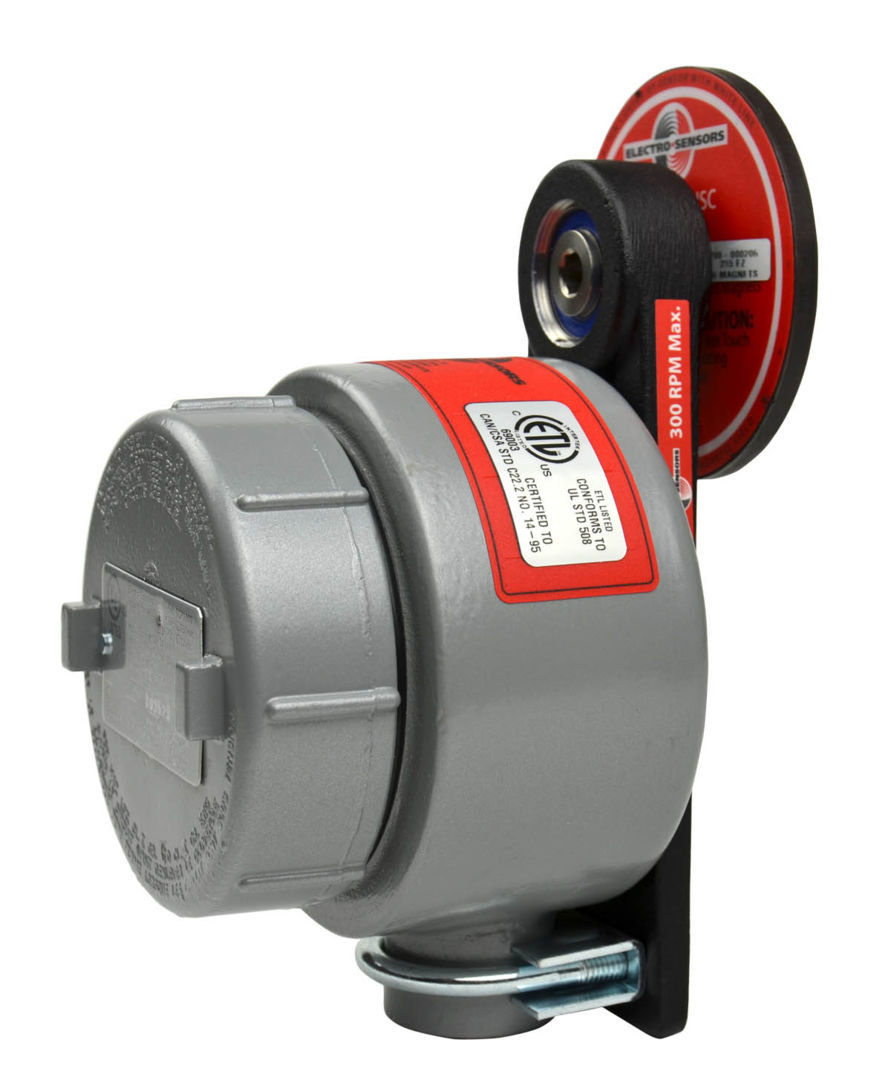

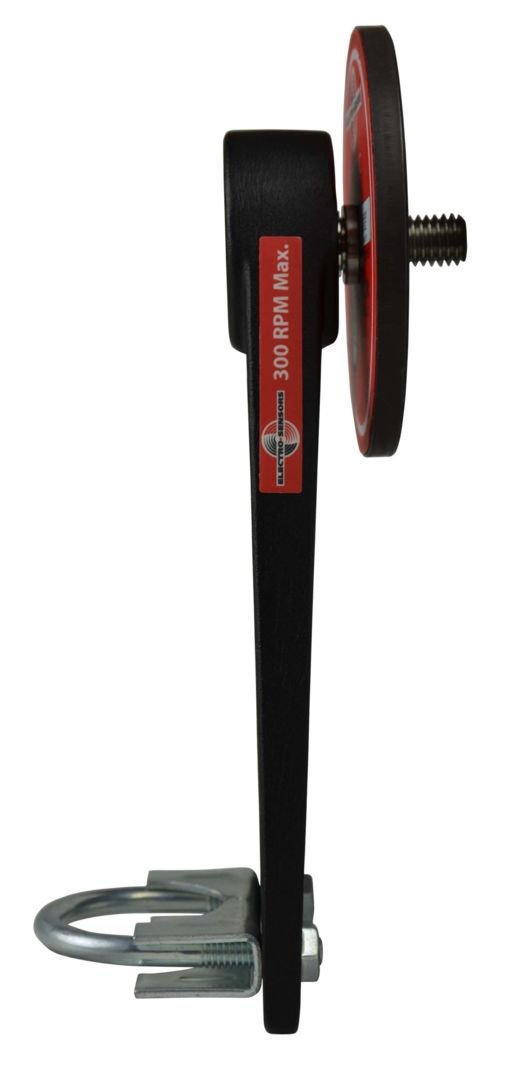

 EZ-SCP Mounting Bracket

Features
• New and retrofit installations
• Easy and fast installation (drill and tap)
• No extra brackets or hardware required
• 1/2 inch - 13 UNC 2A thread
• Includes 255-EZ Pulser Disc (other EZ Pulser Disc
    models available)
• Rated for use up to 300 rpm (for information about
    use with higher speeds, consult factory)

Can be used with the following shaft speed switches:
  • SCP1000 / SCP2000

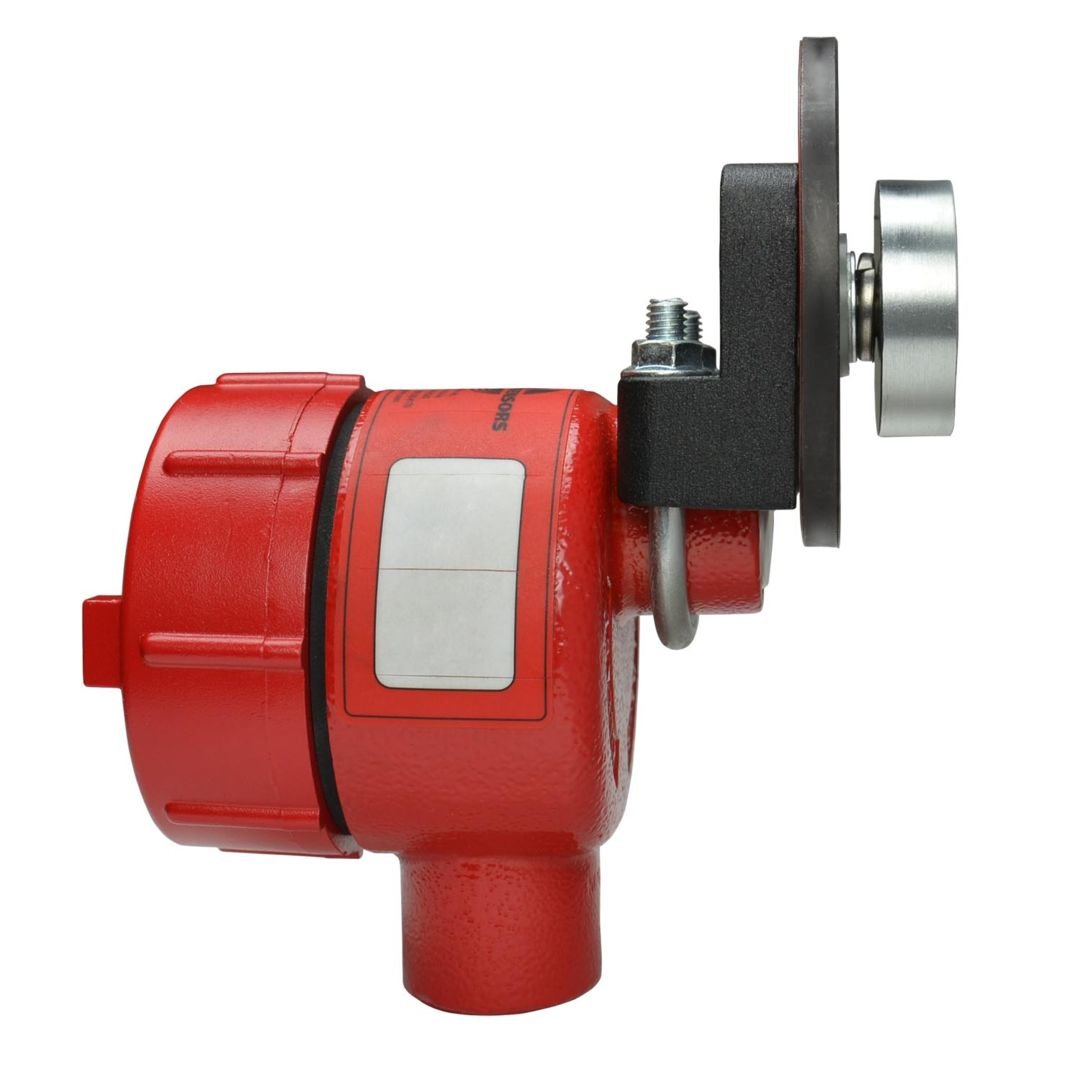

EZ Mounting Magnet Option for Untapped Shafts

MM-2.00 Mounting Magnet
• No drilling or Tapping Needed
• Must be used with Mounting Brackets EZ-100 or EZ-SCP
• Used with M100, 907 XP, M100T, FB420, SCP1000 / SCP2000,
    SpeedTalker DN-XP

Speed Switch Easy Mounting MagnetSpeed Switch Easy Mounting Magnet Easy Mounting Magnet with SCP Speed Switch
