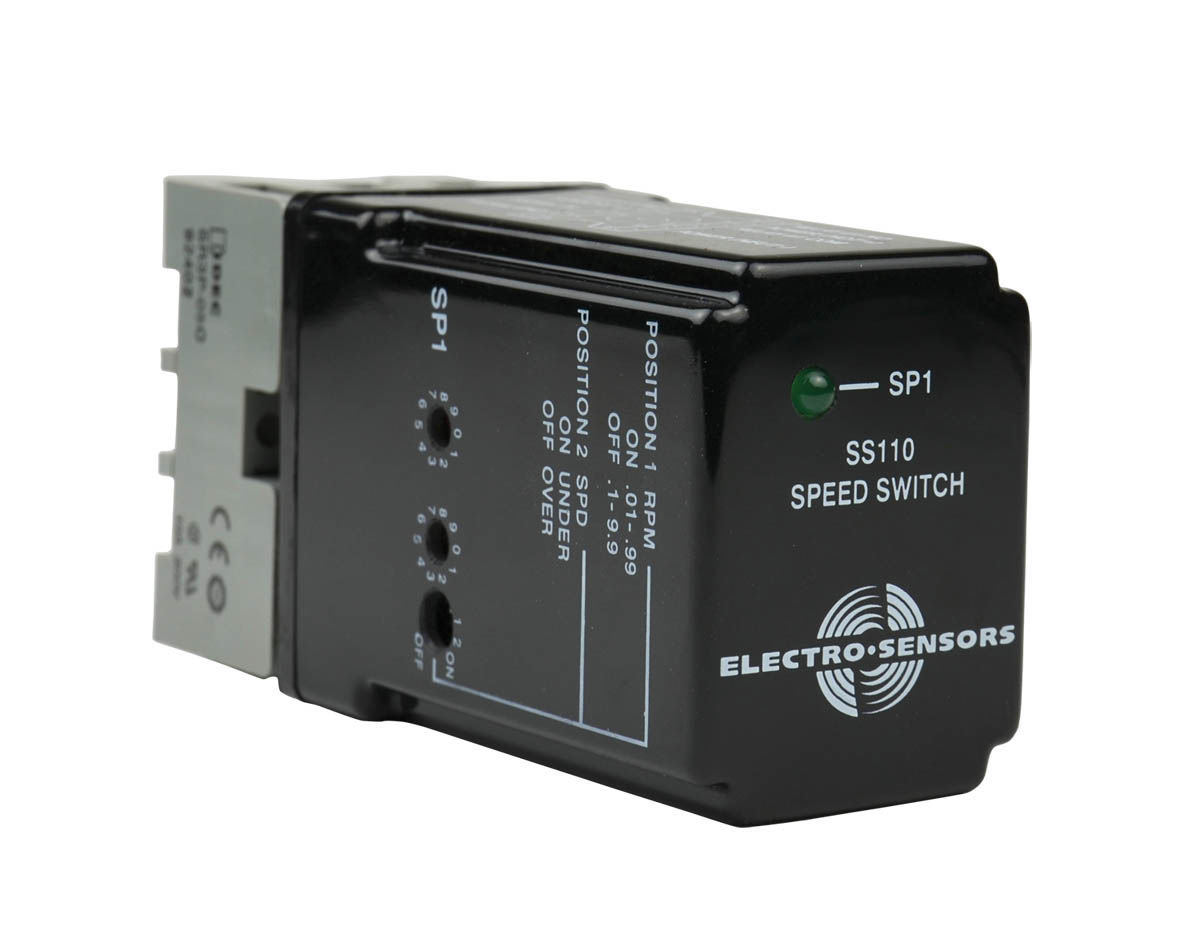

SS110

Slow Speed Switch

Features
  • Dial-in calibration does not require power
  • Setpoint ranges: 0.01 - 0.99 and 0.1 - 9.9 rpm
  • ETL approved to UL 508 standard
  • Failsafe operation in under-speed mode
  • DIN rail or stand alone mounting

The SS110 is completely field ajustable and has one setpoint for monitoring a single rotating shaft. It is used in slow speed applications, and allows accurate under-speed detection within the 1/100-10 rpm range. The SS110 is an efficient way to continuously track proper machine rpm, and provide a relay output upon detection of an unwanted change in speed or stoppage of the monitored shaft.

Configure Your Product to Request a Quote

Select an SS110 Speed Switch Model

Select Sensor for Complete System

Select Pulse Generator Type for Complete System

Disc Guard Option

Option: Lower Disc Guard (For use with Disc Guard EZ-Mount Only)

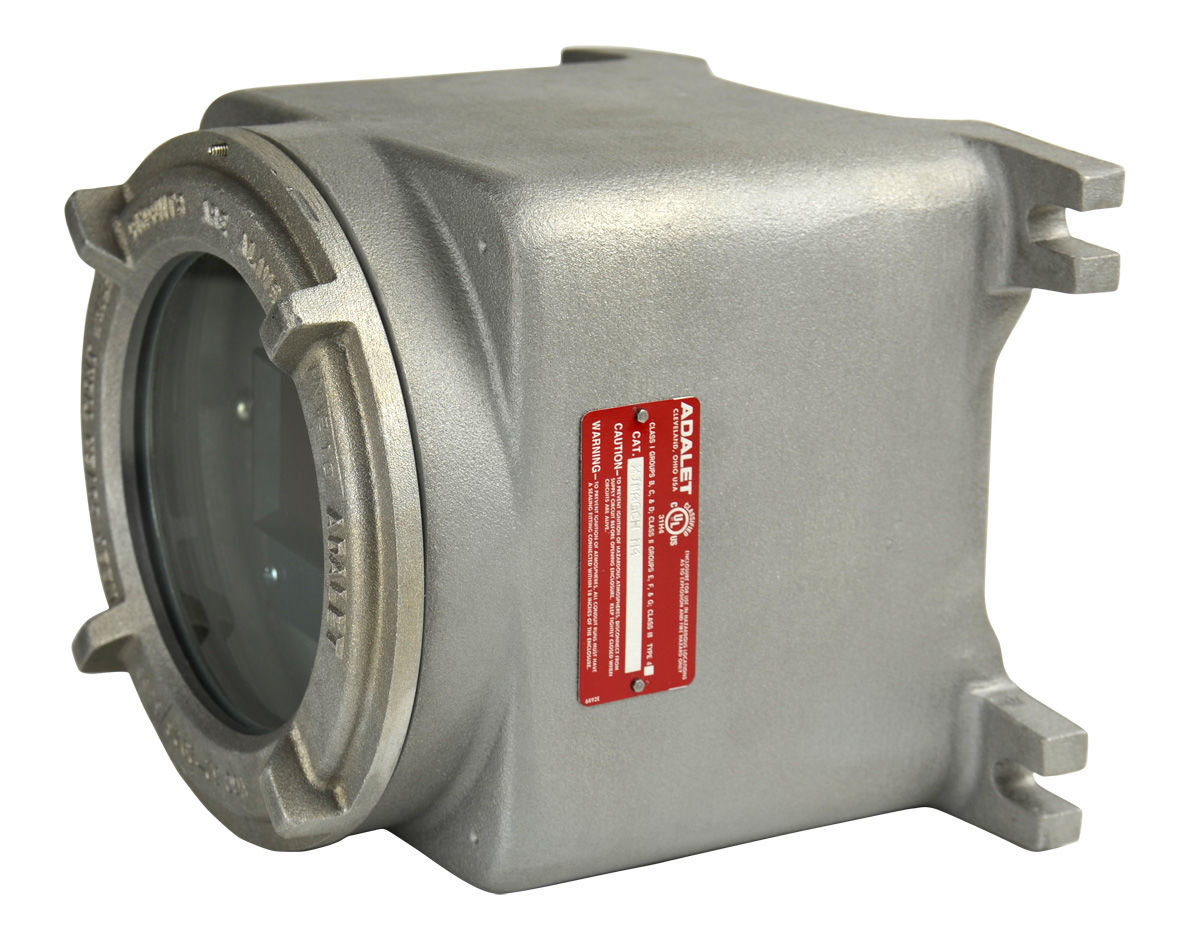

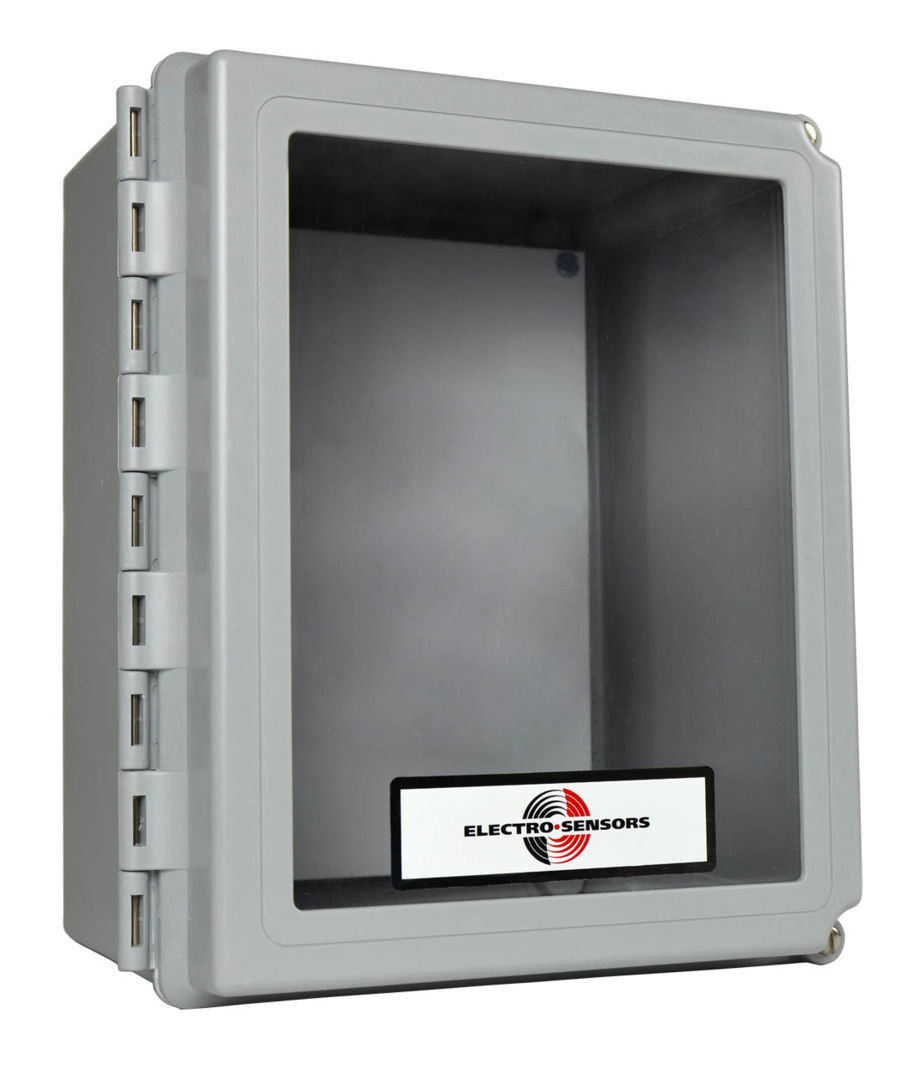

Optional Enclosure

Customer Comments (limit 500 characters)

Qty.
